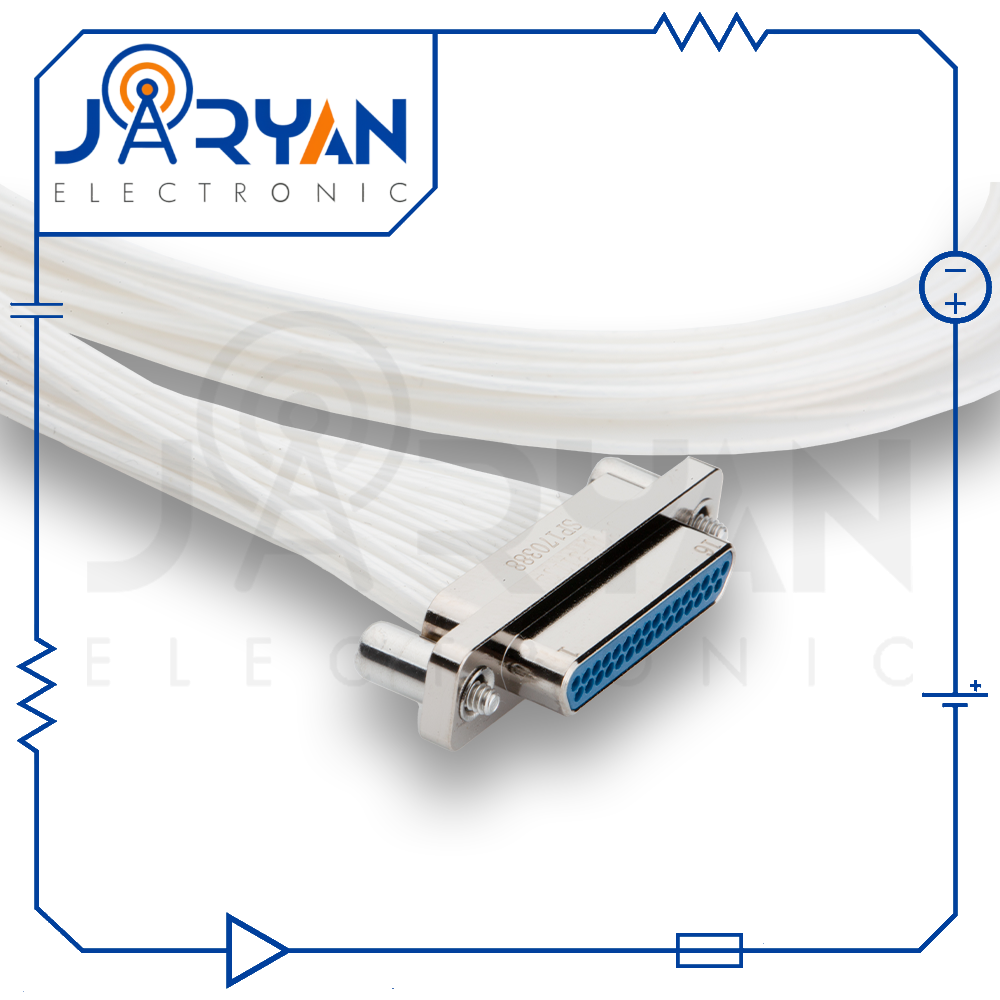

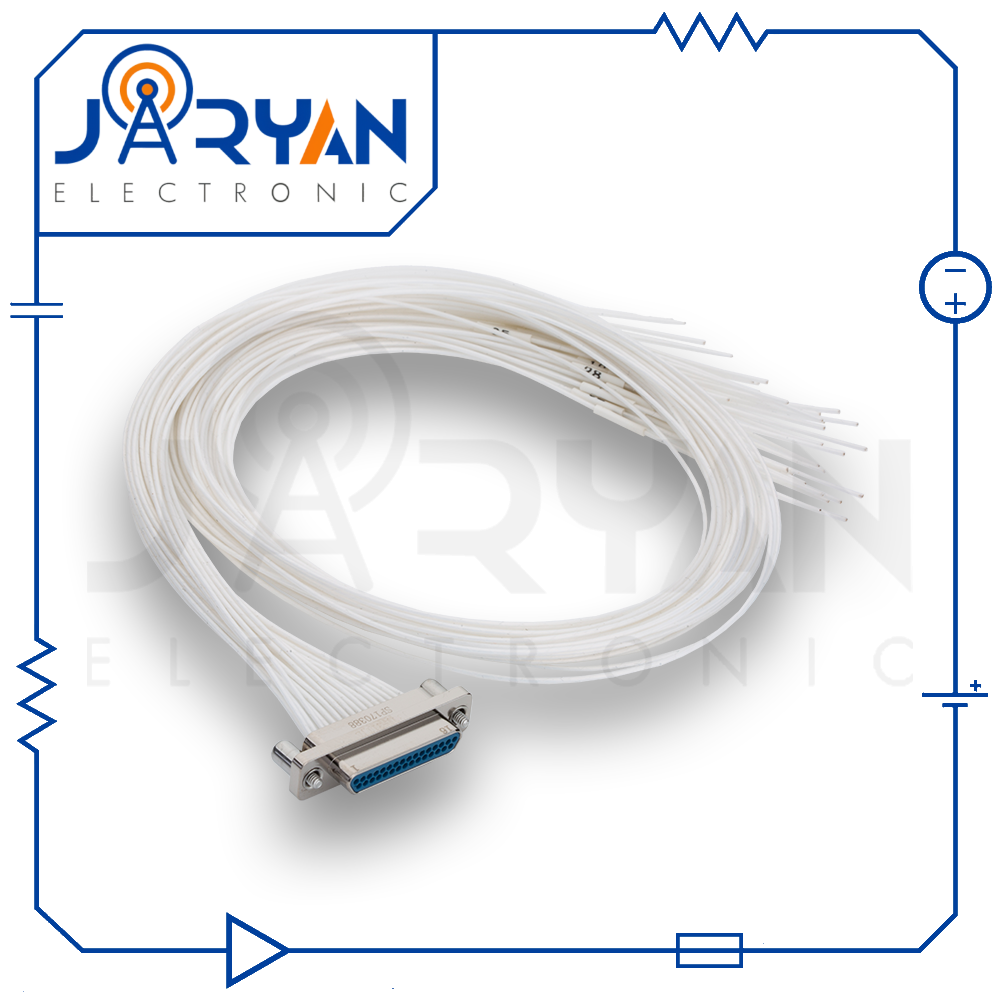

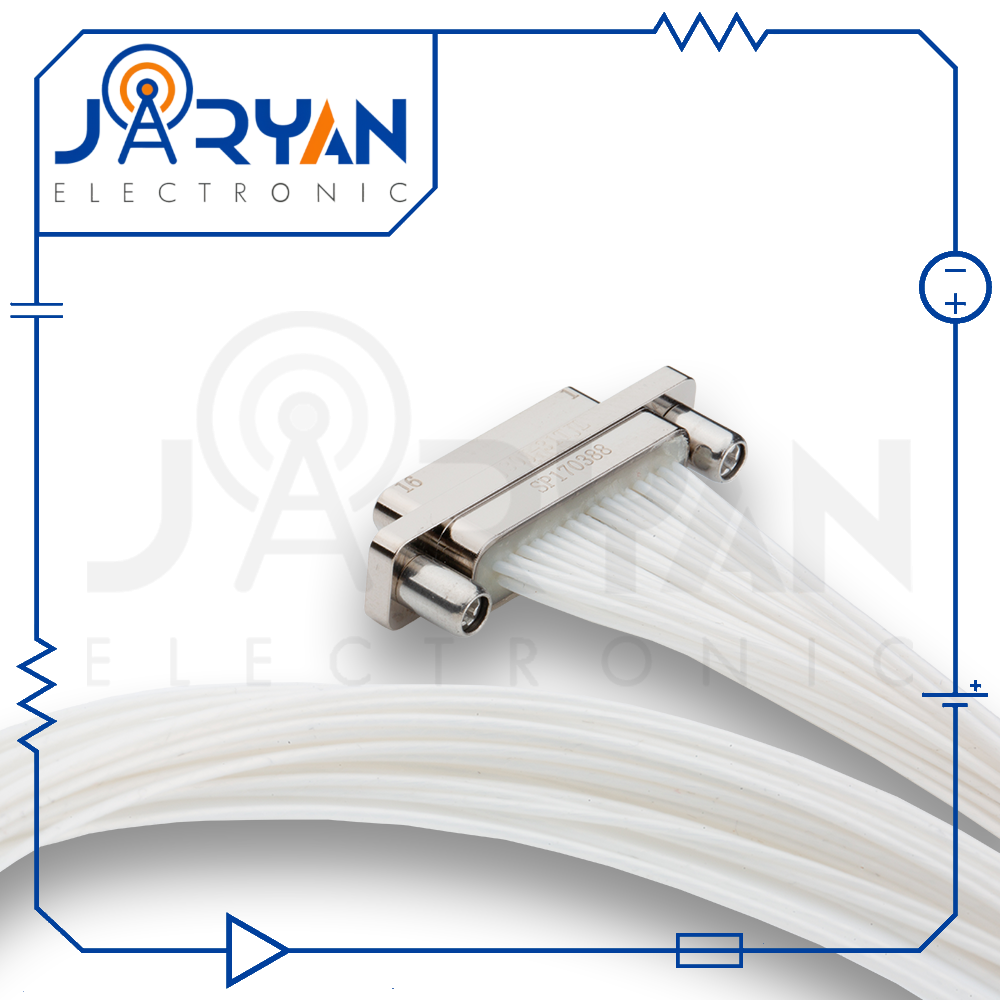

کانکتور J30J-31TJL

Performance specification
Temperature: -55 C ~ +125 C
Relative humidity: at 40 C, 95
Vibration: at 10 Hz ~ 2000 Hz, acceleration 196 m/s2
Shock: 735 m/s2
Acceleration: 735 m/s2
Rated current: 3 A
Contact resistance: ≤ 10 MΩ
Insulation resistance: ≥ 5000 MΩ
Dielectric strength: 800 V
Endurance: ≥ 500 cycles
